Selenium WebDriver Chrome in Visual Studio C#

Automation Testing Published on:
Selenium C#



I'm sure you've all heard of Selenium by now. It's a popular tool used for automating web browser interactions. And while there are many different selenium bindings available, Selenium WebDriver with Chrome using Visual Studio C# is also applicable.

Here’s a beginner-friendly guide covering the basics of setting up and using Selenium WebDriver Chrome in Visual Studio.

INDEX
Configuring Selenium 2.0 with Chrome to work in Visual Studio
First Download the Selenium C# Client Drivers
Configure Visual Studio to work with Selenium
Install Dependencies in Project Way
Install Using NuGet
Time to Code Some Selenium C# Test Scripts!
Using Chrome Developer Tools When Creating Automated Selenium Tests

Join Test Guild Free Courses Today

Configuring Selenium 2.0 with Chrome to work in Visual Studio

In a previous post/video, I showed how to get started using Selenium WebDriver for IE in Visual Studio using Selenium ChromeDriver.

Since then, I've received a few questions on doing the same with Selenium Web Driver and Chrome in Visual Studio. Rather than answer each one individually, I thought it would be better to frame my reply in the form of a quick post.

Also, I know I wrote this 7 years ago, but it still works! I also modified some of the locations of the selenium driver service info.

Today in this post, we will check out how to configure Selenium 2.0 WebDriver to work with Visual Studio and Google Chrome.

Selenium 4 Master Class Cover

First Download the Selenium C# Client Drivers

Here are the three steps to complete downloading the Selenium C#:

1. The first thing we want to do is download the C# DLLs from Selenium's website:

https://www.selenium.dev/downloads/

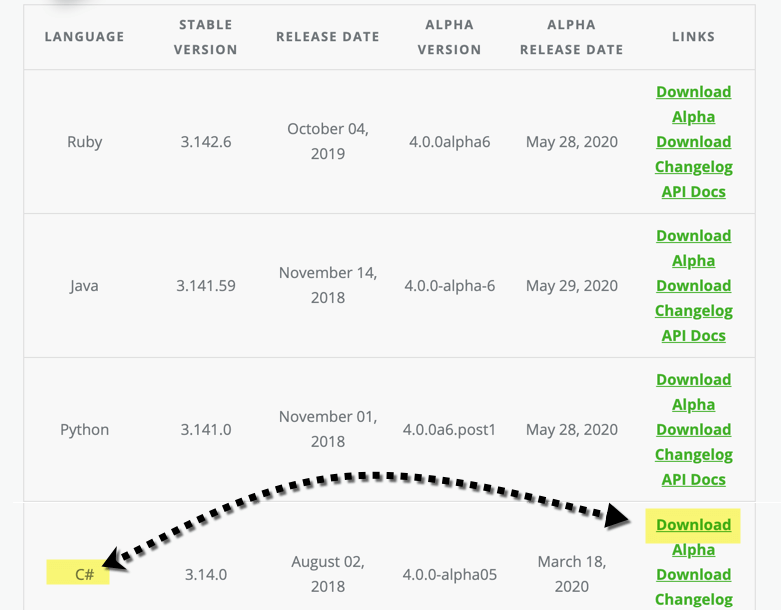

Selenium C# Download

2. You also need to download the ChromeDriver from:

https://sites.google.com/a/chromium.org/chromedriver/

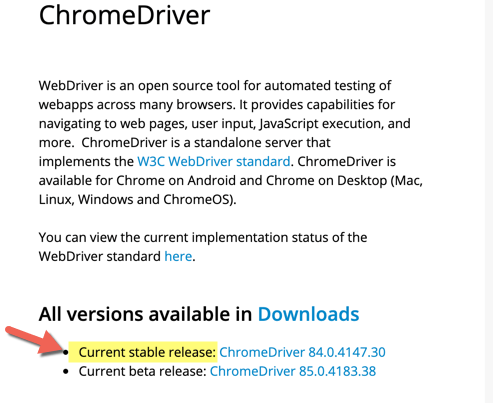

Chrome Driver3. Once you've downloaded the required Selenium files, extract the zips to a local drive on your computer.

Configure Visual Studio to work with Selenium

If you're using Visual Studio, there's a good chance that you want to use Selenium with it.

Here’s how it works:

Install Dependencies in Project Way

The first way is to include all the dependencies in your project:

  • Launch Visual Studio and start a new project

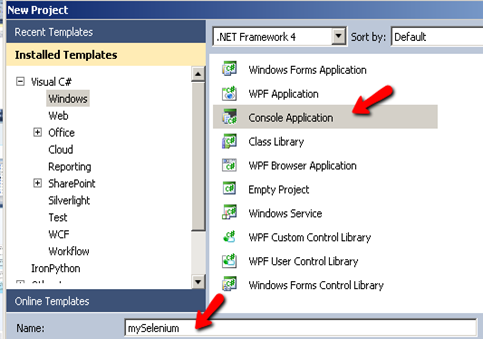

  • Select ‘Console Application' and name your project mySelenium


  • In your project, select Project>Add References from the toolbar and browser to the location where you extract the DLLs to. Make sure that you select the correct version of .NET that you will be using:


  • Select all the DLLs and click ok

Install Using NuGet

The easiest way is to just use .NET's NuGet package management in Visual Studio.

  • Right-click on your project and select “Manage NuGet Packages”
  • In the Manage NuGet Packages Search type Selenium
  • Click on the Selenium.WebDriver option and select the “Add Packages” button

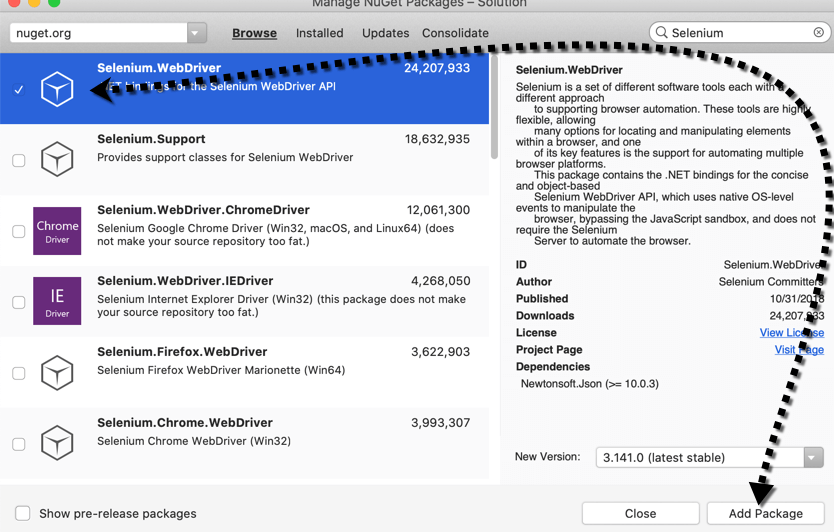

  • Add NuGet Selenium to Visual Studio
  • This will automatically add all the Selenium dependencies to your project

Time to Code Some Selenium C# Test Scripts!

Cool – now that we have the Selenium DLLs referenced in our project, it is time to test the configuration by running a quick test.

1. At the top of your project code, after the last ‘using' namespace, add the following Selenium namespaces:

using OpenQA.Selenium;
using OpenQA.Selenium.Chrome;
using OpenQA.Selenium.Support.UI;

2. Add the following code in your static void main string:

//!Make sure to add the path to where you extracting the chromedriver.exe:
IWebDriver  driver = new ChromeDriver(@"D:\Download\chromedriver"); //<-Add your path
driver.Navigate().GoToUrl("https://testguild.com/HpSupport.html");

Note: You could also create an environment variable named webdriver.chrome.driver on your machine that's value is the path to where the local chromedriver.exe is located. If you set up a webdriver.chrome.driver variable, you would not have to pass the chrome driver argument when you create a ChromeDriver instance.

Note for Mac Users: If you are installing on a Mac, you can add the ChromeDriver to your /usr/local/bin. Open your terminal and type sudo nano /ect/paths. At the end of the file, add /usr/local/bin and save.  Go to your system properties and make sure that you allow app downloads for chrome driver under your Security & Privacy Settings.

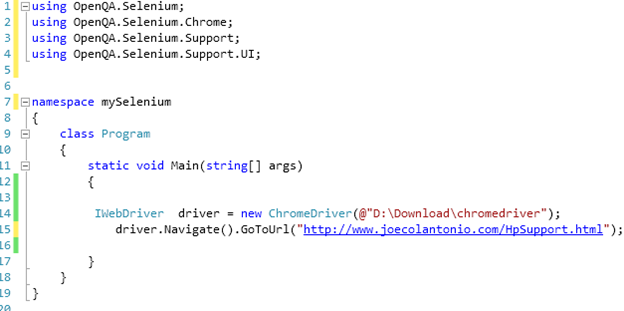

Your code, if you're using a hardcoded path for the chrome driver, should look like this:

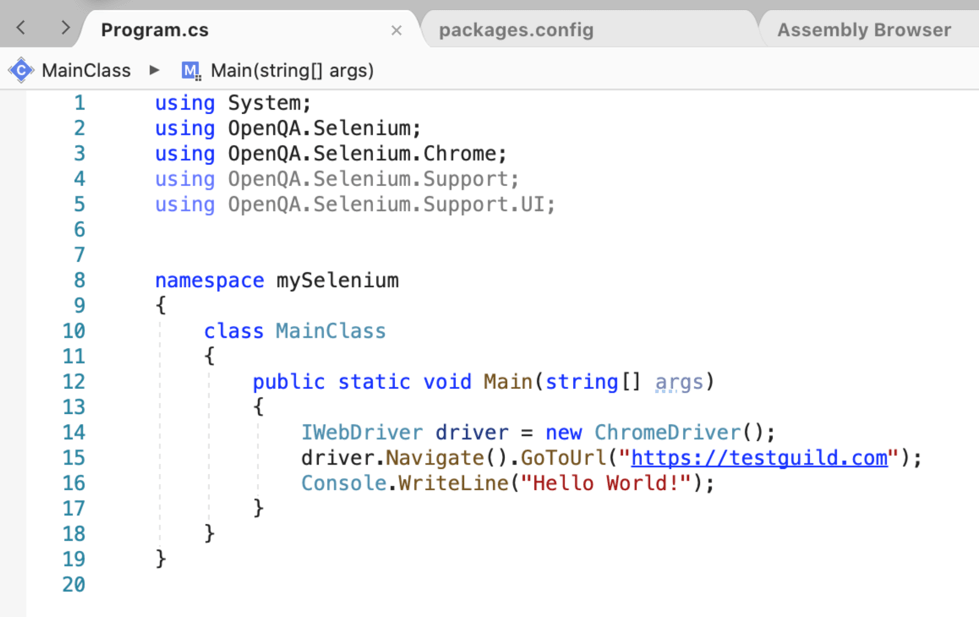

If you install the chrome driver to your PATH, your code should look like this

Chrome Driver Path Code

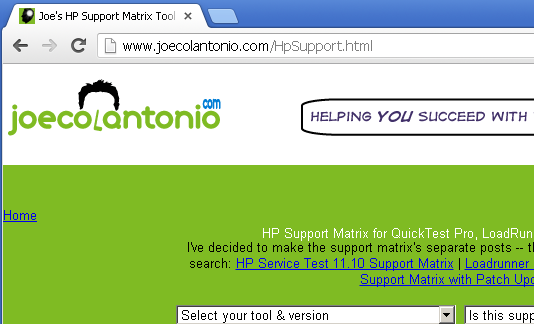

3. Run the test – Google Chrome browser should start and bring up https://testguild.com/HpSupport.html


Using Chrome Developer Tools When Creating Automated Selenium Tests

If you are going to be scripting against Chrome, you should check out the built-in Developer tools (Ctrl+Shift+I). You can also run more Selenium test scripts on the Google Chrome browser.

For those familiar with QTP, this is like QTP's spy feature.

  1. 1. In Google Chrome go to Tools>Developer tools

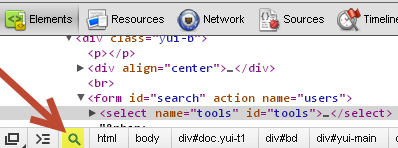

2. Using the Chrome magnifying glass icon feature allows you to spy on an element's attributes. You then use these attributes in your Selenium code to help identify fields in your web application.

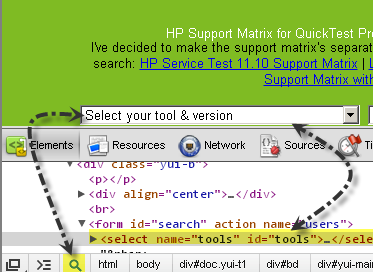

3. For example, if we want to navigate to www.joecolantonio.com/HpSupport.html and select a value from the ‘Select your tool & Version' you would point the magnifying glass to the ‘Select your tool & version” field to get its attributes:


4. Now that we know what the id is, we can use that to help Selenium interact with it. For example:

IWebDriver  driver = new ChromeDriver(@"D:\Download\chromedriver");
driver.Navigate().GoToUrl("https://testguild.com/HpSupport.html");
IWebElement myField = driver.FindElement(By.Id("tools"));
myField.SendKeys("QTP10");

5. Run the test – it should start Chrome, navigate to http://www.joecolantonio/HPSupport.Html, and select QTP10 from the Select your tool & version.

Good luck and happy Selenium scripting to you!
